You’ve decided to build a home gym. The dumbbells are in your Amazon basket, you’ve bookmarked a squat rack, and you’re already picturing early morning deadlifts before the rest of the house wakes up. Then you walk into the spare room — or the garage, or the shed — and realise you have no idea whether any of this will actually fit. That moment of doubt is exactly why this guide exists.
In This Article
- The Minimum Space You Need
- Space Requirements by Equipment
- Room Types and What Fits
- Layout Planning: The Zone Approach
- Ceiling Height: The Forgotten Dimension
- Flooring and Floor Strength
- Ventilation and Temperature
- Noise and Neighbours
- Making the Most of Small Spaces
- Frequently Asked Questions
The Minimum Space You Need
The absolute minimum for a functional home gym is about 2m × 2.5m (5 square metres). That’s enough for a fold-out bench, a set of adjustable dumbbells, and room to do floor exercises without kicking the wall. It’s tight, but it works. I’ve trained in spaces this size and the main limitation is psychological — you feel boxed in — rather than physical.
For a more comfortable setup with a barbell and squat rack, you need at least 2.5m × 3.5m (about 9 square metres). This gives enough room to load plates, step back from the rack, and perform movements like lunges without worrying about hitting anything.
For a full setup with a rack, bench, cardio machine, and floor space for stretching, plan for 3.5m × 4.5m (about 16 square metres). This is roughly the size of a standard single UK garage, and it’s the sweet spot where training actually feels enjoyable rather than just possible.
The Buffer Zone Rule
Always add at least 60cm of clear space around every piece of equipment. This isn’t a suggestion — it’s a safety requirement. You need room to bail out of a failed squat, step off a treadmill in an emergency, or simply walk past equipment without tripping over a barbell.
Behind a squat rack, you need a minimum of 1.2m clear. That’s enough to walk a barbell out, set your stance, and have space to dump the bar backwards if needed. Cutting this short puts you at real risk of injury.
Space Requirements by Equipment
Here’s what each piece of equipment actually needs, including the working area around it:
Power/Squat Rack
- Equipment footprint: 120cm × 120cm (typical full rack)
- Working area needed: 250cm × 250cm
- Why so much extra? You need 120cm behind for walkouts and 60cm each side for plate loading. The best squat racks for home use are designed with home space constraints in mind
Olympic Barbell
- Bar length: 220cm (standard Olympic)
- Working area needed: 300cm × 250cm (for deadlifts, rows, and floor presses)
- Note: This is the single biggest space consumer. If your room is less than 3m wide, consider a 6ft (183cm) barbell instead — you’ll sacrifice some plate capacity but gain usable space
Weight Bench (Flat/Incline/FID)
- Equipment footprint: 130cm × 55cm (typical FID bench)
- Working area needed: 200cm × 150cm
- Note: The bench itself is compact, but you need room to get on and off, plus clearance for dumbbell work with arms extended. Our guide to the best weight benches covers which models fold for storage
Adjustable Dumbbells
- Equipment footprint: 45cm × 25cm per dumbbell on a stand
- Working area needed: 200cm × 200cm (for presses, rows, lunges)
- Why they’re brilliant for home gyms: a single pair of adjustable dumbbells replaces 10+ pairs of fixed dumbbells, saving enormous floor space
Rowing Machine
- Equipment footprint: 250cm × 55cm
- Working area needed: 300cm × 100cm
- Note: Rowers are long. Some models fold upright (Concept2 Model D stores vertically at about 55cm × 135cm). Check whether your ceiling height allows vertical storage before buying. See our rowing machine guide for models that fold
Exercise Bike
- Equipment footprint: 120cm × 55cm (typical spin bike)
- Working area needed: 170cm × 100cm
- Note: The most space-efficient cardio option. Some budget exercise bikes have an even smaller footprint
Treadmill
- Equipment footprint: 180cm × 75cm
- Working area needed: 250cm × 120cm
- Note: Treadmills need 100cm of clear space behind them — this is a safety buffer in case you slip or the belt catches. The British Standards Institution recommends this clearance for domestic treadmill installation
Yoga/Stretching Mat
- Mat size: 183cm × 61cm (standard)
- Working area needed: 220cm × 120cm (for poses with extended arms and legs)
Room Types and What Fits
Single Garage (Typical UK: 5m × 2.7m = 13.5m²)
The most common home gym location in the UK, and for good reason. A single garage fits:
- A squat rack or half rack against the back wall
- A fold-away bench
- A barbell with bumper plates
- Floor space for deadlifts and rows
- Wall-mounted pull-up bar
What won’t fit comfortably: a rack plus a full-size rowing machine plus a treadmill. You’ll need to choose one cardio machine, or use a folding rower.
Double Garage (6m × 5.5m = 33m²)
Luxury territory. You can fit essentially everything and still have room for a car on one side if you’re disciplined about layout. The garage gym setup guide covers exactly how to plan this.
Spare Bedroom (Typical UK: 3m × 3m = 9m²)
Enough for:
- Adjustable dumbbells on a stand
- A fold-flat bench
- A yoga mat
- An exercise bike or compact rower
Not enough for: a barbell or squat rack (too long, too heavy for upstairs floors without reinforcement, and too noisy for the room below).
Garden Shed (Typical: 2.4m × 1.8m = 4.3m²)
Enough for dumbbells, a bench, and bodyweight work. Not much else. The ceiling is usually too low for overhead presses or pull-ups, and insulation is non-existent — training in January will test your commitment.
Under-Stairs Space or Alcove
Surprisingly useful for a compact station: wall-mounted pull-up bar, resistance bands, a dumbbell rack, and a yoga mat rolled up in the corner. It’s not a gym, but it’s a training station that removes the excuse of “no space.”
Layout Planning: The Zone Approach
The most effective way to plan a home gym layout is to divide the space into zones:
Zone 1: Strength (The Anchor)
This is your rack, barbell, and bench area. Place it against the strongest wall (external walls in garages, load-bearing walls in houses). The rack is the heaviest, tallest piece of equipment — everything else works around it.
Zone 2: Free Weights
Dumbbell rack or storage, kettlebells, and an open area for dumbbell work. Place this adjacent to Zone 1 so you can move between barbell and dumbbell work without crossing the room.
Zone 3: Cardio
Rower, bike, or treadmill. This can go in a corner since cardio machines are used one at a time and don’t need surrounding space for movement (except the treadmill’s rear clearance).
Zone 4: Floor/Flexibility
Open floor space for stretching, yoga, core work, and warm-ups. Keep this clear of equipment — resist the temptation to fill every square metre. If you follow a home gym workout plan, you’ll use this zone more than you expect.
Ceiling Height: The Forgotten Dimension
Floor space gets all the attention, but ceiling height eliminates more equipment choices than floor area does.
Minimum Heights
- Pull-ups: you need at least 230cm if you’re of average height (175cm). Taller lifters need 250cm+
- Overhead press (standing): 230cm minimum. A 180cm person pressing a barbell overhead reaches about 220cm at lockout
- Squat rack with a pull-up bar: most rack-mounted pull-up bars sit at 210-220cm. Add your height and arm reach — you need 240cm+ to use them without crouching
- Rope climbs or gymnastics rings: 280cm minimum. Most home gyms can’t accommodate these
UK-Specific Ceiling Heights
- Modern houses (post-2000): typically 240cm ground floor, 230cm first floor
- Victorian/Edwardian houses: often 270-300cm ground floor — perfect for home gyms
- Garages: hugely variable. Many UK single garages have effective ceiling heights of only 210-220cm after accounting for garage door mechanisms and roof trusses
- Garden buildings: most standard sheds are 200-210cm, which rules out overhead pressing and pull-ups
Measure your ceiling height before buying anything. A rack you can’t do pull-ups on is an expensive coat hanger.
Flooring and Floor Strength
Weight Limits
Ground floors (concrete slab garages, ground-floor rooms) can handle anything you’ll put in a home gym. The concrete slab alone is rated for far more than any home gym equipment and weights will produce.
First-floor rooms are different. UK building regulations require residential floors to support 1.5kN/m² (about 150kg per square metre) as a minimum. A loaded squat rack with 200kg of weight on a 1.2m × 1.2m footprint concentrates 200kg into 1.44m², which is within the structural limit — but that’s the static load. Dropping a barbell creates dynamic loads several times higher.
If you’re putting heavy equipment upstairs, spread the load. Place the rack parallel to the floor joists (not across them), use thick rubber mats to distribute weight, and avoid dropping weights. Or just keep the heavy stuff on the ground floor.

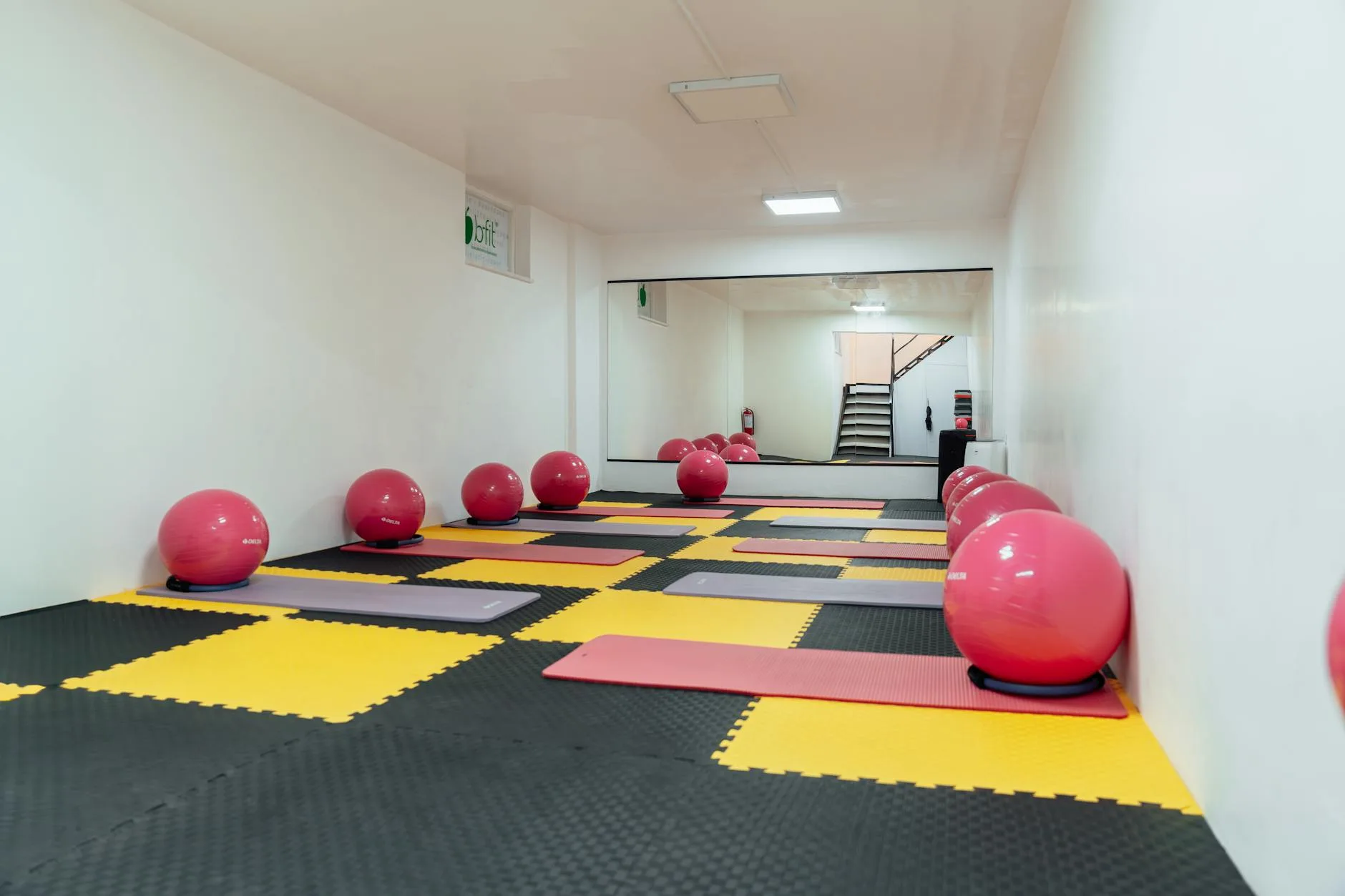

Flooring Materials
For a full rundown, see our best gym flooring guide. The short version:
- Rubber tiles (15-20mm): the standard. Protect the floor, dampen noise, provide grip. About £20-30 per square metre from Fitness Superstore or Amazon UK
- Horse stall mats: a budget hack from the equestrian world. 18mm rubber, about £30 per 6×4ft mat from agricultural suppliers. Heavy, smelly when new, but almost indestructible
- Foam puzzle mats: fine for bodyweight and dumbbell work. Not suitable under a squat rack or for dropping weights — they compress and shift
Ventilation and Temperature
Garages and Sheds
UK garages get cold. Really cold. Sub-zero in January, and the concrete floor makes it worse. Options:
- Fan heater (about £20-30) — takes the edge off but won’t warm a single garage quickly
- Oil-filled radiator — slower but more efficient for maintaining temperature during a session
- Insulation — the proper solution. Insulating garage walls and ceiling (PIR boards, about £20 per sheet from B&Q or Wickes) makes a permanent difference. It also helps in summer when garages become ovens
Ventilation matters more than heating for most of the year. A single open window or a cheap extractor fan prevents that stale, humid atmosphere that encourages mould on equipment and walls.
Spare Rooms
Ventilation is easier — open a window. The main concern is moisture damage to carpets and walls from sweat. Use a fan, keep the door open, and consider a small dehumidifier if the room feels damp after sessions.
Noise and Neighbours
If you’re in a terraced house or flat, noise will limit your equipment choices more than space does. We covered this in depth in our noise reduction guide, but the key points:
- Deadlifts and Olympic lifts are the loudest exercises — dropping 100kg+ from hip height creates impact noise that travels through floors and walls
- Thick rubber mats (20mm+) absorb landing impact. Crash pads or silencer pads reduce noise further
- Cardio machines produce sustained noise. Rowing machines are quieter than treadmills. Air bikes are the loudest cardio option
- Time your sessions — early morning deadlifts in a terraced house will get you a noise complaint. Ask me how I know
Making the Most of Small Spaces
Wall-Mounted Equipment
- Fold-back squat rack — mounts to the wall, folds flat when not in use. Reclaims 120cm × 120cm of floor space. The Strengthshop Riot and PRX Performance Profile are both popular choices
- Wall-mounted pull-up bar — uses zero floor space
- Wall-mounted plate storage — keeps plates off the floor and within arm’s reach of the rack
- Resistance band pegs — small hooks that hold bands flush against the wall
Adjustable/Multi-Use Equipment
- Adjustable dumbbells — one pair replaces 10+ fixed pairs. The best adjustable dumbbells save roughly 1.5m × 0.5m of rack space
- FID bench — flat, incline, and decline in one bench. Choose one that folds upright for storage
- Kettlebell (single adjustable) — one bell covers 8-32kg. Less versatile than dumbbells but takes up almost no space
Vertical Storage
Think upwards, not outwards. Barbells in vertical wall racks, plates on wall-mounted trees, resistance bands on hooks. Every piece of equipment stored on a wall is floor space recovered for training.
Frequently Asked Questions
Can I put a home gym in a bedroom? Yes, but with caveats. Keep the weight moderate (adjustable dumbbells and a bench are fine, a loaded barbell rack is not), use thick rubber mats to protect the floor, and check with your landlord if you’re renting. First-floor bedrooms have weight limits — keep the total load under 150kg per square metre and avoid dropping weights.
How much does it cost to convert a garage into a gym? A basic conversion (rubber flooring, basic lighting, insulation) costs about £300-500. A full conversion with electrical work, insulated walls, and climate control runs £1,000-2,000. The equipment itself is separate — a decent home gym setup starts at about £500 as covered in our guide to building a home gym under £500.
Do I need planning permission for a garden gym? Not usually. Most garden buildings fall under permitted development rights if they’re single storey, cover less than 50% of the garden, aren’t forward of the front wall of the house, and are under 2.5m high at the boundary. Check your local council’s guidelines if you’re near a conservation area or listed building.
What’s the best room for a home gym? A ground-floor room with a concrete slab (garage, utility room, or ground-floor extension) is ideal. It handles heavy equipment, absorbs noise better than timber floors, and you don’t have to worry about weight limits. Second choice is a spare bedroom for lighter equipment like dumbbells, a bench, and bodyweight training.
How much floor space does a Concept2 rower need? About 300cm × 100cm when in use. When stored upright, it takes up only 55cm × 135cm of floor space — making it one of the most space-efficient cardio machines available. It’s 244cm long, so ensure your room is at least 3m in the rowing direction.
